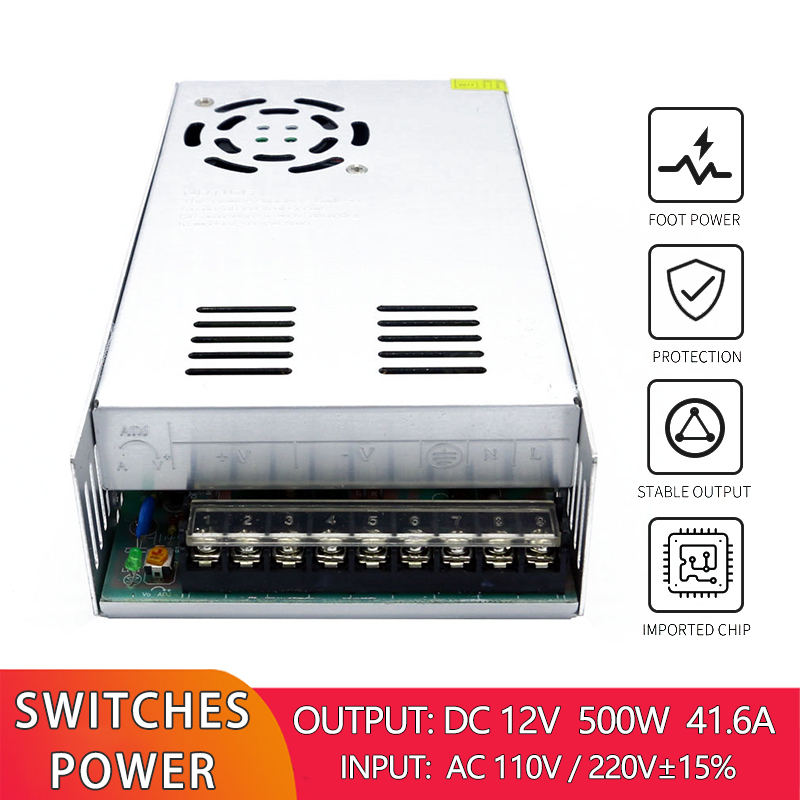

12V 500W Switching Power Supply For LED Lights AC 100V 240V To DC 12V

Place of Origin : Guangdong, China

Model Number : S-500-12

Certification : CE

Packaging Details : 30pcs/box

Price : Negotiation

MOQ : Negotiation

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 3-10days

Output Power : 500W

Input Voltage : AC110/220V±15%

Output Voltage : 12V

Output Frequency : 50-60Hz

Product Name : Chassis Switching Power Supply

Type : AC DC Power Module Converter

Efficiency : 80%

Weight : 850g

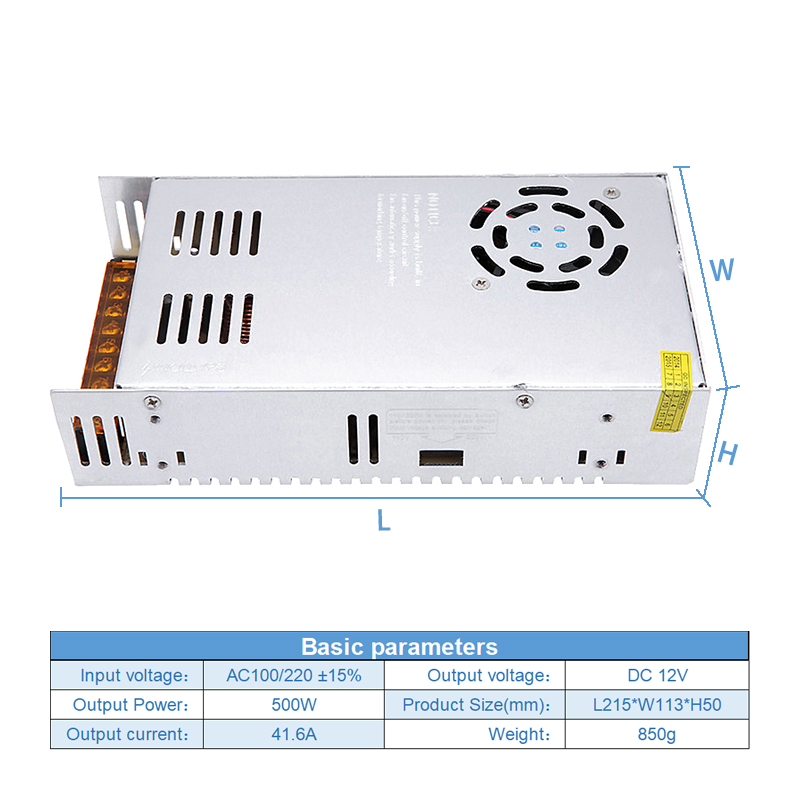

Size : L215*W113*H50(mm)

Protections : Short Circuit Overtemp Overload Overvolt

Contact Now

12V 500W LED Lighting Voltage Regulator Drive Power AC 100V 240V to DC 12V Switching Power Supply

DC 12V 500W 41.6A AC to DC Indoor LED Lighting Switching Power Supply Transformer Drive Adapter

◆Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

◆Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

12V 500W Switching Power Supply For LED Lights AC 100V 240V To DC 12V

Thickened metal shell

◆The shell is made of high-quality metal material, which has good pressure resistance, anti-interference and anti-rust ◆Built-in cooling fan, openings on the metal shell, more efficient heat dissipation.

Featured Components

High-quality raw materials - pure copper inductors, high-performance transformers, and high-capacity electrolytic capacitors are the guarantee of high-quality power supplies;

Suitable for a variety of electronic devices

Products are widely used in industrial automation control, LED lighting, industrial control equipment, communication power equipment, instrumentation, medical equipment, liquid crystal displays, digital products and instruments and other fields

12V 500W Switching Power Supply For LED Lights AC 100V 240V To DC 12V

Model	S-500-12
AC input voltage range(V)	AC110/220V±15%
AC Input current(max)	10A /AC220V;20A/AC110V
Frequency (Hz)	50/60Hz
Efficiency	80% Typ(230VACFull Load)
Inrush current(A)	Cold-start 20A/230V
Leakage current(mA)	<3mA/240VAC
Output Voltage(V)	+12VDC
Voltage Regulation	+10%,-10%
Output Current(A)	41.6A
Current Range (A)	0-41.6A
Rated Power(W)	500W
Start time,hold-up time(ms)	Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms)	Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)	120mVp-p
working Temperature (°C)	-40°C - +65°C(refer derating curve)
Storage Temperature(°C)	-20°C - +60°C
Humidity	20% - 90% RH non condensing
Over voltage Protection	>115%-135% Rated output voltage
Over load Protection	>105%-150% Auto recovery
Short circuit Protection	Latched
Size LWH(mm)	21511350mm
Weight	850g

Easy to install and easy to use

Product Description

12V 500W Switching Power Supply For LED Lights AC 100V 240V To DC 12V

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Negbox
Model Number	S-500-12
Output Power	500W
Output Type	Single
Input Voltage	AC110/220V±15%
Output Voltage	12V
Output Frequency	50-60Hz
Output Current	41.6A
Product Name	Chassis Switching Power Supply
Application	LED Lighting
Warranty	2 Years
Certification	CE
Type	AC DC Power Module Converter
Efficiency	80%
Weight	850g
Size	L215W113H50(mm)
Protection	OCP OVP SCP OPP
Protections	Short Circuit Overtemp Overload Overvolt
